Orient X-CEL Module-Upto 335 W/24V 2dwecwdf
Description :
Powered by cutting-edge Mono PERC technology for maximum energy efficiency. Built with A-grade 5BB solar cells for better power generation. AR-coated glass to absorb up more sunlight, increasing power output. Strong silver anodized aluminum frame with pre-drilled holes for fast, easy installation. Excellent performance in low-light or cloudy skies, ensuring steady energy. Double EL-tested to guarantee no hot spots or microcracks in our Solar PV Modules.
Request a QuoteAbout this Solar Panel
- Powered by cutting-edge Mono PERC technology for maximum energy efficiency.
- Built with A-grade 5BB solar cells for better power generation.
- AR-coated glass to absorb up more sunlight, increasing power output.
- Strong silver anodized aluminum frame with pre-drilled holes for fast, easy installation.
- Excellent performance in low-light or cloudy skies, ensuring steady energy.
- Double EL-tested to guarantee no hot spots or microcracks in our Solar PV Modules.
- Water- and dust-proof IP68-rated junction box with a 4mm cable and two MC4 connectors for simple setup.
- Compatible with 24V inverters and Two 12V batteries.
- BIS-certified, ALMM (MNRE) listed, and compliant with all IEC standards for trusted quality.
- Delivers great value with affordable solar panel prices, lower installation costs, and high returns on investment.
ELECTRICAL CHARACTERISTICS AT STC
| Maximum Power Pmax (Wp) | 410 |
| Maximum Voltage Vmpp (V) | 41.88 |
| Maximum Current Impp (A) | 9.79 |
| Open Circuit Voltage Voc (V) | 51.44 |
| Short Circuit Current Isc (A) | 10.04 |
| Module Efficiency(%) | 20.65 |
PV MODULE SPECIFICATIONS
| Model Number | OrientXLP410 |
| Cells | 72-5BB Cut Cells |
| Nominal Voltage | 24 Volts |
| Product Weight | 8.7 Kgs |
| Product Dimensions | 101 cm x 66.5 cm x 3 cm |
| Manufacturer Warranty | 10 Years |
| Performance Warranty | 30 Years |
| Package Components | 1 Solar Panel, Junction Box, Cables & MC4 Connectors |

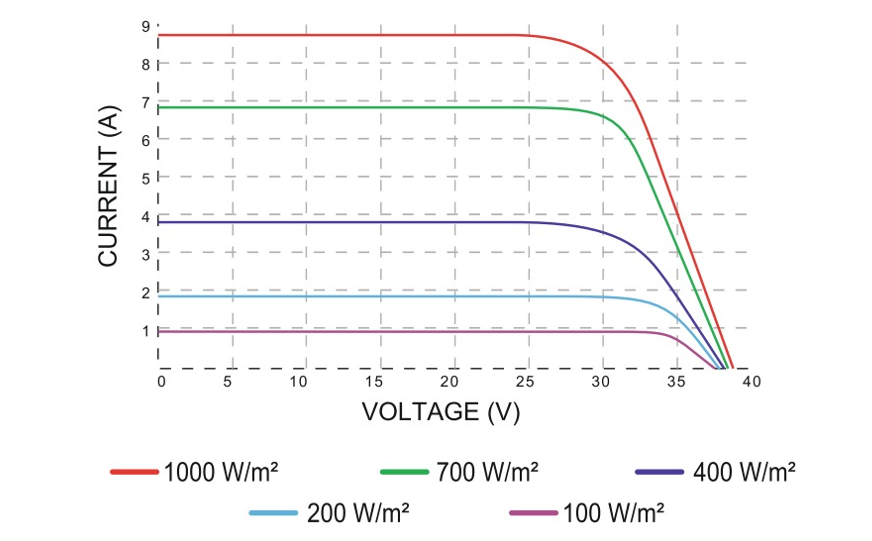

IV CURVE GRAPH

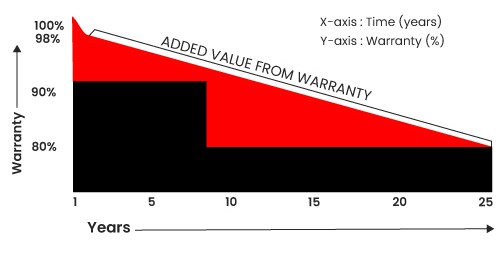

Warranty & Degradation
Product Warranty: 12 Years
Performance Warranty: Linear Power Warranty for 25 years with 2% for 1st year degradation and 0.55% from year 2 to 25 year
APPLICATIONS
- Home Rooftops
- Powering Caravans
- EV Charging Stations
- Filling Stations
